Automatic Feeding System for Chicken Farm

  • Motor Power: 0.75 kw
  • Voltage: 380V
  • Motor frequency: 50HZ

  • Product Description
  • Technical Data

Automatic Feeding System for chicken farm

We imported from German which is the best and most advanced technology in the market, can make the surface of the wire mesh smooth, the manure will drop down into the manure ditch easily instead of stick on the cage, or it will pollute the eggs and affect the health of chicken. In addition, our galvanization give more elasticity of the wire mesh than other’s which can give safer to eggs when it falls on the lower side of the cage.

The System Advantages:

1)Saving more labors because the automatic control panels can control feeding trolley
2)It can be equipped with all kinds of A and H frame cage system, highly optimized for general use. It makes the A and H frame cage system being higher as 3--8 tiers
3)The board are made of Aluminum Zinc plate, antirust and strong structure
4)Very easy to make installation and connect with the silo, feed delivery are automatic

Details Description:

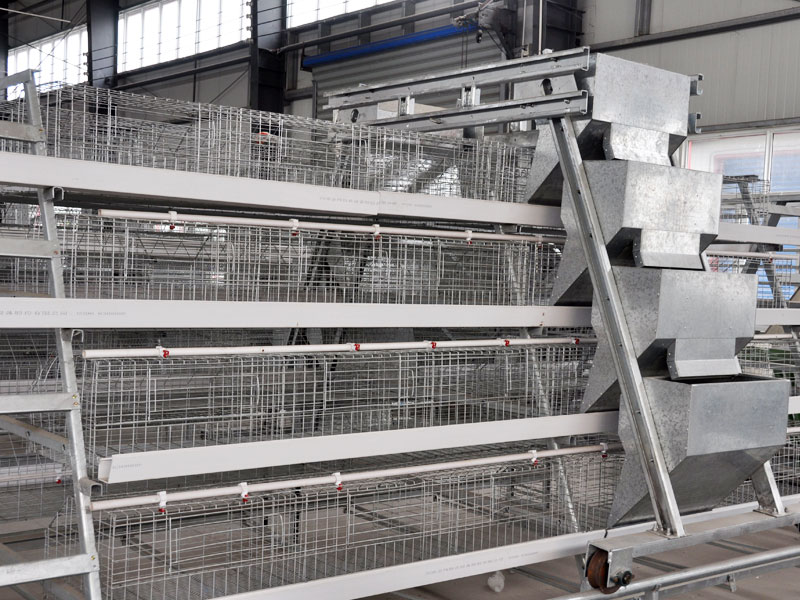

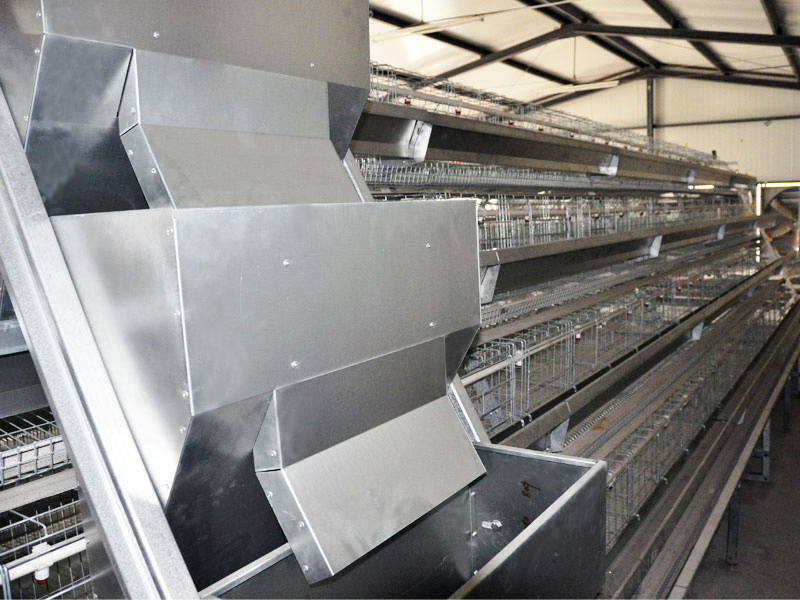

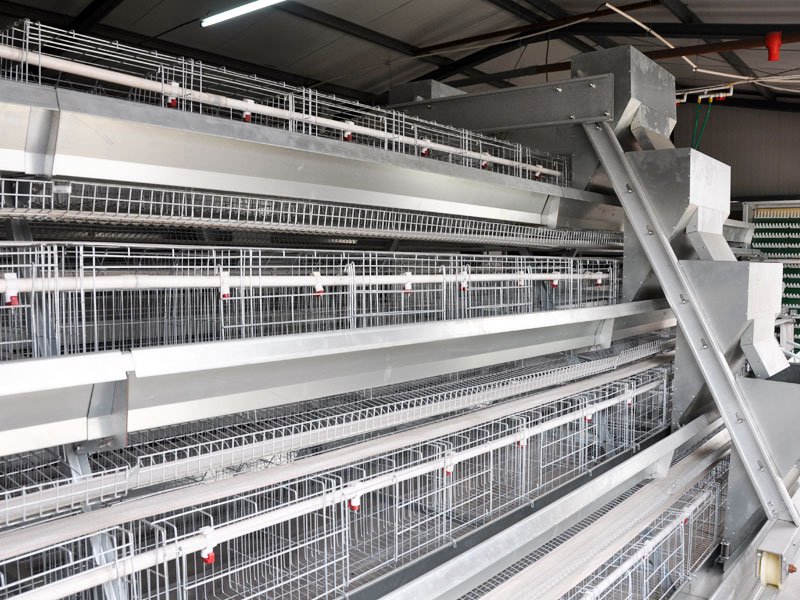

Hopper

The hoppers play an important role in the feeding system. The material is galvanized steel sheet with thickness of 2.2 mm.  All the hoppers are fixed on the feeding machine and deliver fodder to the feeding trough symmetrically.

Fodder flatten system

The fodder flatten system is constituted by nuts and bolts, spring and capacity control plate.
This system makes sure all the chicken can have enough fodder they need which means more healthy and higher rate of  laying.

Working Orbit

Our working orbit is galvanized round pipes with diameter of 50 mm and thickness of 3 mm.
The orbit is 6 meters long per piece and fixed on the cage frames.
The connection spot of two pipes is lined with a galvanized pipe with diameter of 44mm. This design makes sure the connection spot is strong and stable.

Engine and Auger

We import the auger from South Africa. It is flexible and hard-wearing. It transfers the fodder into hoppers, then delivers the fodder to the feeding trough for chicken.
The hoppers play an important role in the feeding system. The material is galvanized steel sheet with thickness of 2.2 mm.

Item No. Cell Lenngth Cell Depth Cell Height Unit Dimension Cells/Unit/Set Tiers/Set Birds/cell/unit/set
HY-A390 390 350 380 1960*350*380 5/6 3 3/15/90
HY-A4120 390 350 380 1960*350*380 5/8 4 3/15/120
HY-A396 490 350 380 1870*3350*380 4/6 3 4/16/96
HY-A4128 490 430 380 1870*350*380 4/8 4 4/16/128
HY-3120 430 420 410 1960*460*400 5/6 3 4/20/120
HY-A4160 430 420 410 1960*460*400 5/8 4 4/20/160
